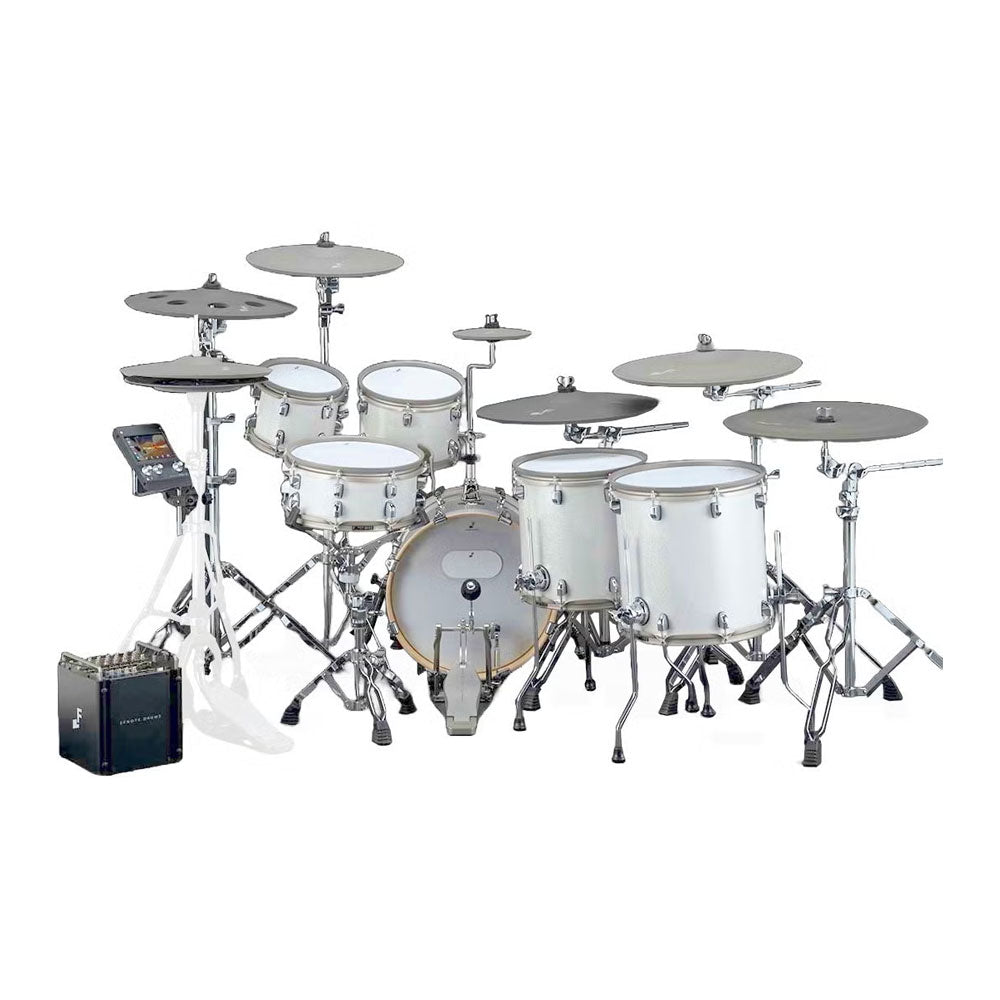

The EFNOTE PRO 506 Progressive Set Electronic Drum Kit combines six drum shells and seven cymbal positions with the EFNOTE PRO sound module. Built around a 16" bass drum and 12" snare, its two rack toms and two floor toms provide an extended playing layout in a smaller drum format. It suits drummers who want plenty of surfaces for detailed fills and cymbal accents, alongside separate output control for live performance and recording.
The 8" and 10" rack toms lead into 12" and 13" floor toms, giving you four tom surfaces to move phrases around. The cymbal setup includes 14" hi-hats, a 17" FX pad, a 16" cymbal pad, an 8" splash, two 18" cymbal pads and an 18" china. Dedicated splash, effects and china pads put contrasting accents within reach without needing to change kits during a part.
More Playing Options, Smaller Drum Sizes
The Progressive Set gives you an expanded two-up, two-down tom layout around a 16" bass drum. It is worth considering if you want several tom and cymbal surfaces but prefer smaller drum sizes to a full-sized stage configuration. Think about how you like to position the two floor toms and additional cymbals when planning your setup.

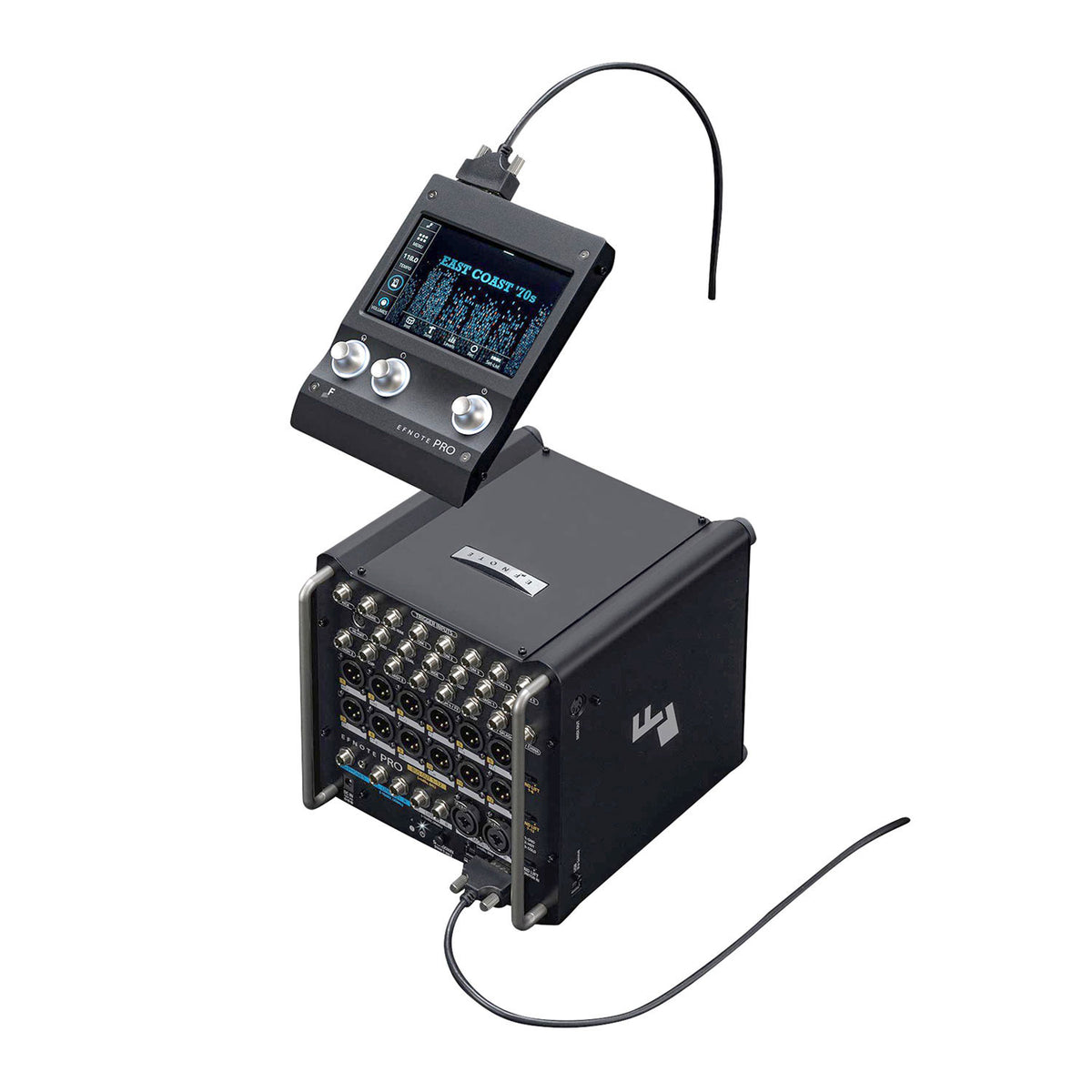

The EFNOTE PRO module provides 12 balanced XLR outputs, allowing separate drum groups to reach the mixing desk rather than committing everything to one stereo mix. High-pass filters and two-band EQ on buses 1-12, plus compression on buses 1-6, help tailor those signals to the sound system. The two-piece design keeps a full-colour touchscreen near the player and the main connections on a floor-standing base unit.
For recording, simultaneous USB multitrack audio and MIDI capture gives you separate tracks to work with afterwards. Save and recall settings for different songs or venues, build a drummer's monitoring balance with the bus mixer, or use Bluetooth audio input to play along with tracks from your phone.
Key Features
- Six-shell configuration with two rack toms and two floor toms, giving you four tom surfaces for fills and phrasing.
- 16" bass drum and 12" snare for players who prefer smaller drum sizes within an expanded setup.
- Seven cymbal positions, including dedicated FX, splash and china pads, for contrasting accents.
- 12 balanced XLR outputs for separate drum-group control at the mixing desk.
- Bus high-pass filters, two-band EQ and compression for tailoring the live output.
- Two-piece EFNOTE PRO module with a touchscreen control surface and floor-standing connection unit.
- Simultaneous USB multitrack audio and MIDI recording for flexible studio workflows.
- Bluetooth audio input for playing along with music, plus Bluetooth MIDI connectivity.
Specifications
- Brand: EFNOTE
- Series: PRO
- Model: 506 Progressive Set
- Product Type: Electronic drum kit
- Configuration: Six drum shells and seven cymbal positions
- Tom Layout: Two rack toms and two floor toms
- Bass Drum Diameter: 16"
- Snare Drum Diameter: 12"
- Rack Tom Diameters: 8" and 10"
- Floor Tom Diameters: 12" and 13"
- Hi-Hat Diameter: 14"
- FX Pad Diameter: 17"
- Splash Pad Diameter: 8"
- Cymbal Pads: One 16" and two 18"
- China Pad Diameter: 18"
- Sound Module: EFNOTE PRO EFD-PRO
- Balanced Bus Outputs: 12 × XLR
- Bus Processing: High-pass filter and two-band EQ on buses 1-12; compression on buses 1-6
- USB Audio: 12-channel output at 48 kHz/24-bit; two-channel input at 48 kHz/16-bit
- MIDI: USB MIDI input/output, Bluetooth MIDI and five-pin DIN MIDI output
- Bluetooth Audio: A2DP audio input
What's Included
- 16" bass drum and 12" snare drum
- 8" and 10" rack toms
- 12" and 13" floor toms
- 14" hi-hat pad
- 17" FX pad and 8" splash pad
- One 16" cymbal pad and two 18" cymbal pads
- 18" china pad
- EFNOTE PRO sound module
Please note: Kick pedal, hi-hat stand, drum throne, sticks, headphones, smartphone and computer are not included.
