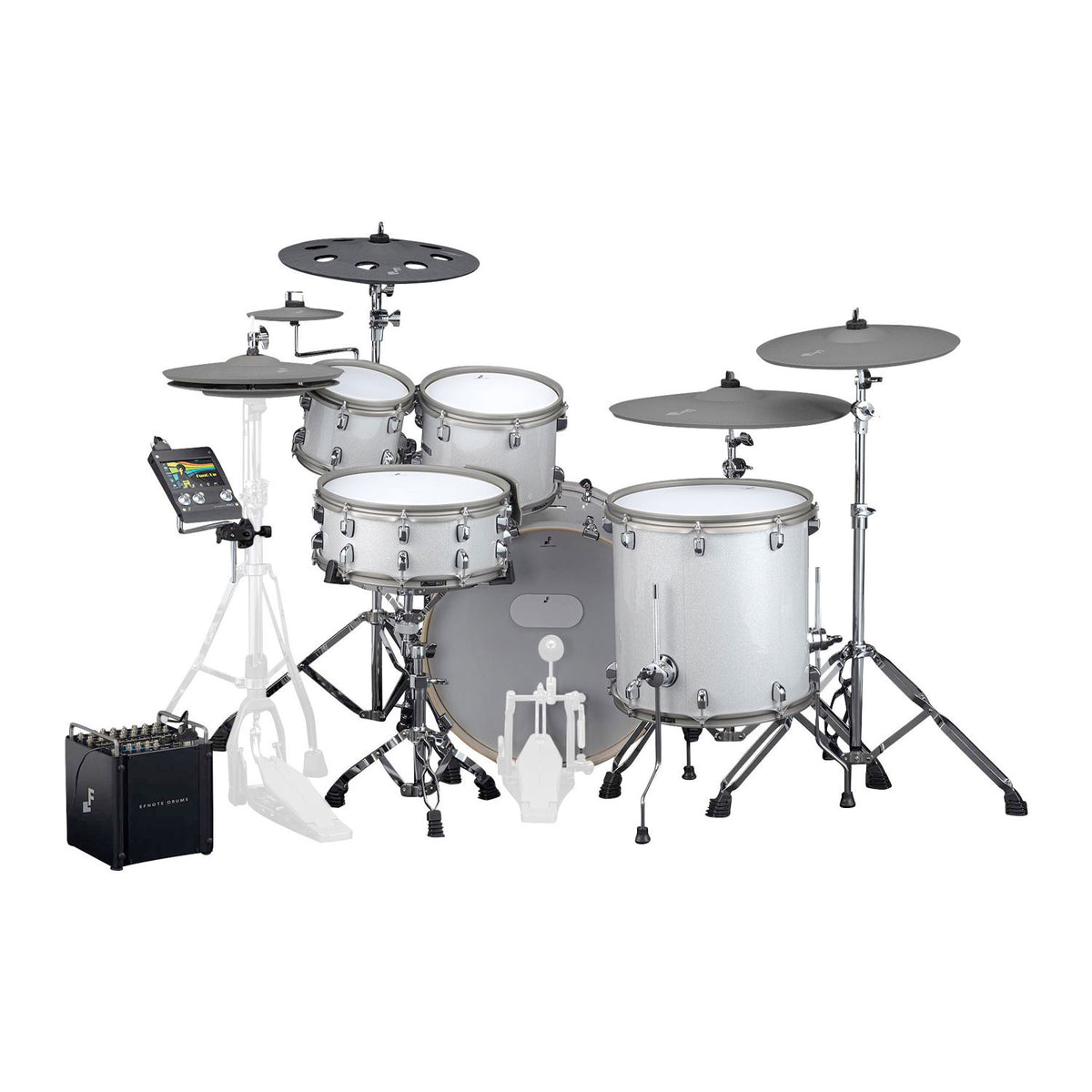

The EFNOTE PRO 702 Modern Set Electronic Drum Kit combines a five-shell, two-rack-tom layout with five cymbal positions and the EFNOTE PRO sound module. Its 20" bass drum, 14" snare, 8" and 11" rack toms and 15" floor tom provide a full-sized electronic setup, while dedicated splash and effects pads add separate surfaces for contrasting accents. It suits drummers who want a two-up, one-down arrangement with flexible live mixing and multitrack recording.
The cymbal layout includes 14" hi-hats, an 8" splash, a 17" effects pad, a 16" cymbal pad and a 20" ride. That gives you clearly separated surfaces for timekeeping, short accents and effects parts. The two rack toms and single floor tom offer three tom voices without the additional floor-tom position of a larger configuration.
Dedicated Accents, Flexible Live Mixing
The Modern Set places splash and effects pads alongside the main cymbal and ride, so you can move between different accents without changing kits mid-part. Behind the playing layout, the EFNOTE PRO module provides 12 balanced XLR outputs for sending separate drum groups to the mixing desk. The sound engineer can balance kick, snare, toms and cymbals around the band rather than working with a fixed stereo mix.
High-pass filters and two-band EQ are available on buses 1-12, with compression on buses 1-6, for shaping the output before it reaches the console. A full-colour touchscreen control surface keeps settings within reach, while the main connections sit on a floor-standing base unit.
Save and recall settings for different songs or venues, build a drummer's monitoring balance with the bus mixer, or capture simultaneous USB multitrack audio and MIDI for editing afterwards. Bluetooth audio input also lets you play along with music from your phone.
Key Features
- Five-shell layout with two rack toms and one floor tom, giving you three tom surfaces for fills and phrasing.
- Dedicated 8" splash and 17" effects pads for contrasting accents alongside the main cymbal and ride.
- 20" bass drum and 14" snare within a full-sized electronic configuration.
- 12 balanced XLR outputs for separate drum-group control at the mixing desk.
- Bus high-pass filters, two-band EQ and compression for tailoring the live output.

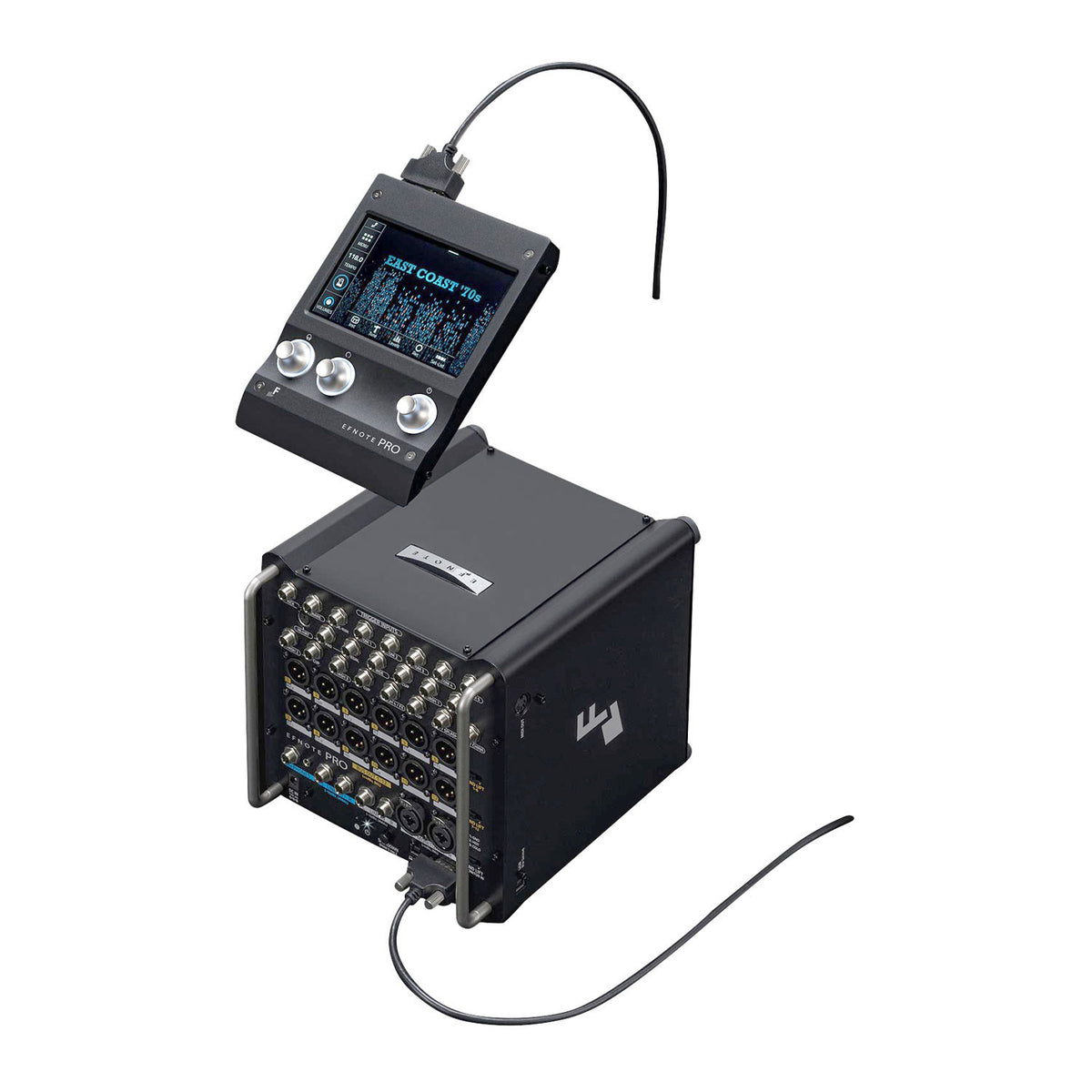

- Two-piece EFNOTE PRO module with a touchscreen control surface and floor-standing connection unit.
- Simultaneous USB multitrack audio and MIDI recording for flexible studio workflows.
- Bluetooth audio input for playing along with tracks, plus Bluetooth MIDI connectivity.
Specifications
- Brand: EFNOTE
- Series: PRO
- Model: 702 Modern Set
- Product Type: Electronic drum kit
- Configuration: Five drum shells and five cymbal positions
- Tom Layout: Two rack toms and one floor tom
- Bass Drum Diameter: 20"
- Snare Drum Diameter: 14"
- Rack Tom Diameters: 8" and 11"
- Floor Tom Diameter: 15"
- Hi-Hat Diameter: 14"
- Splash Pad Diameter: 8"
- Effects Pad Diameter: 17"
- Cymbal Pad Diameter: 16"
- Ride Pad Diameter: 20"
- Sound Module: EFNOTE PRO EFD-PRO
- Balanced Bus Outputs: 12 × XLR
- Bus Processing: High-pass filter and two-band EQ on buses 1-12; compression on buses 1-6
- USB Audio: 12-channel output at 48 kHz/24-bit; two-channel input at 48 kHz/16-bit
- MIDI: USB MIDI input/output, Bluetooth MIDI and five-pin DIN MIDI output
- Bluetooth Audio: A2DP audio input
What's Included
- 20" bass drum and 14" snare drum
- 8" and 11" rack toms
- 15" floor tom
- 14" hi-hat pad
- 8" splash pad and 17" effects pad
- 16" cymbal pad and 20" ride pad
- EFNOTE PRO sound module
Please note: Kick pedal, hi-hat stand, drum throne, sticks, headphones, smartphone and computer are not included.
