Yamaha EAD20 Electronic Acoustic Drum System

Yamaha EAD20 Electronic Acoustic Drum System

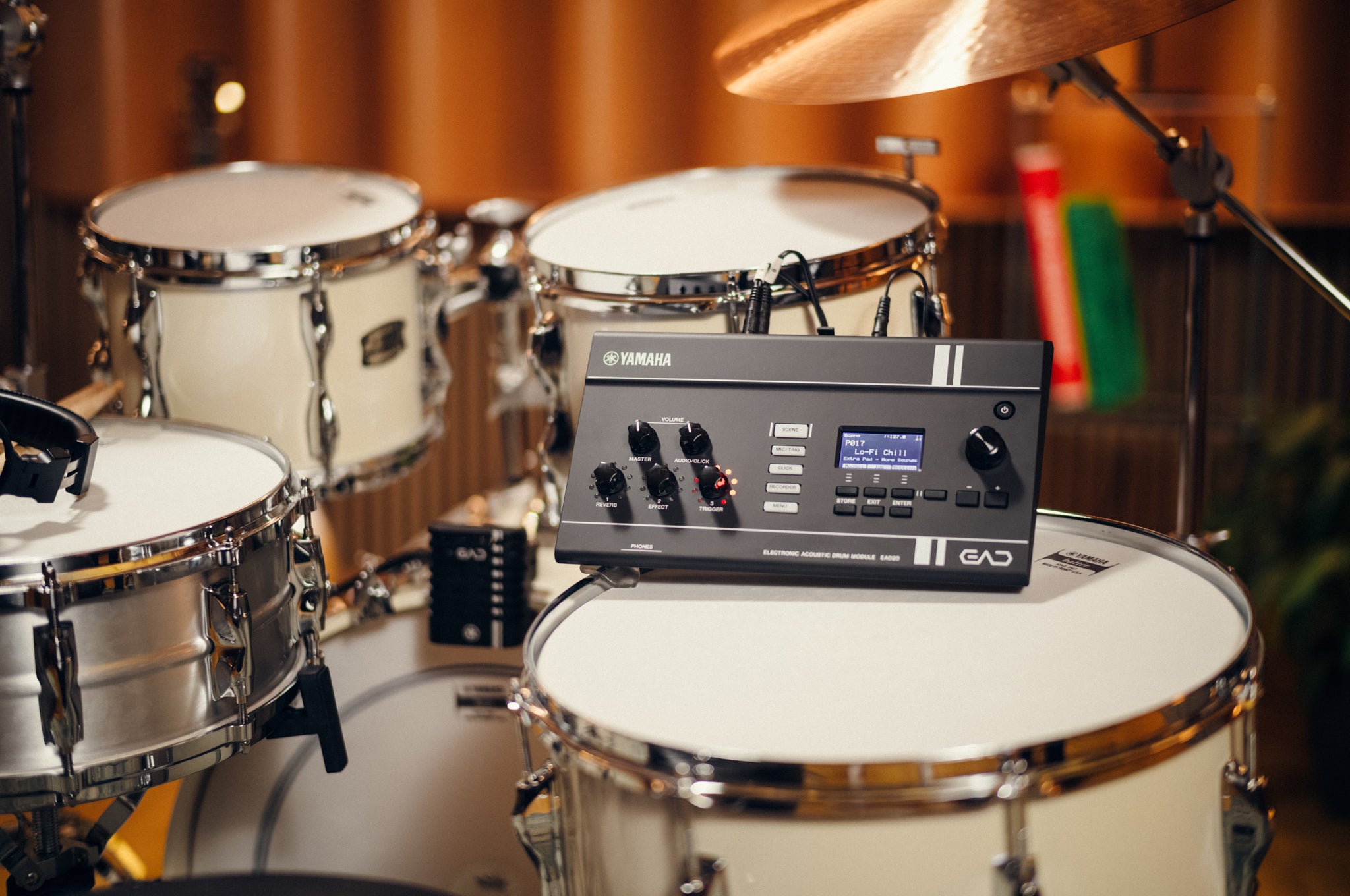

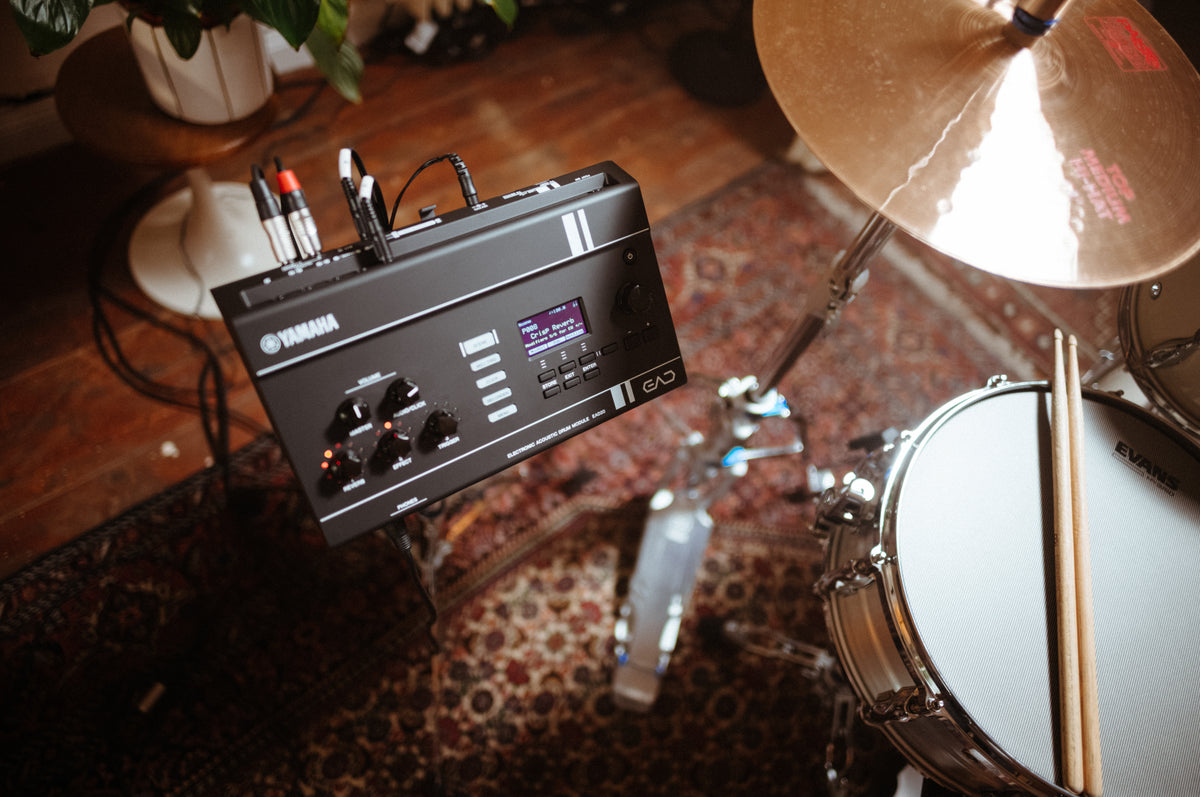

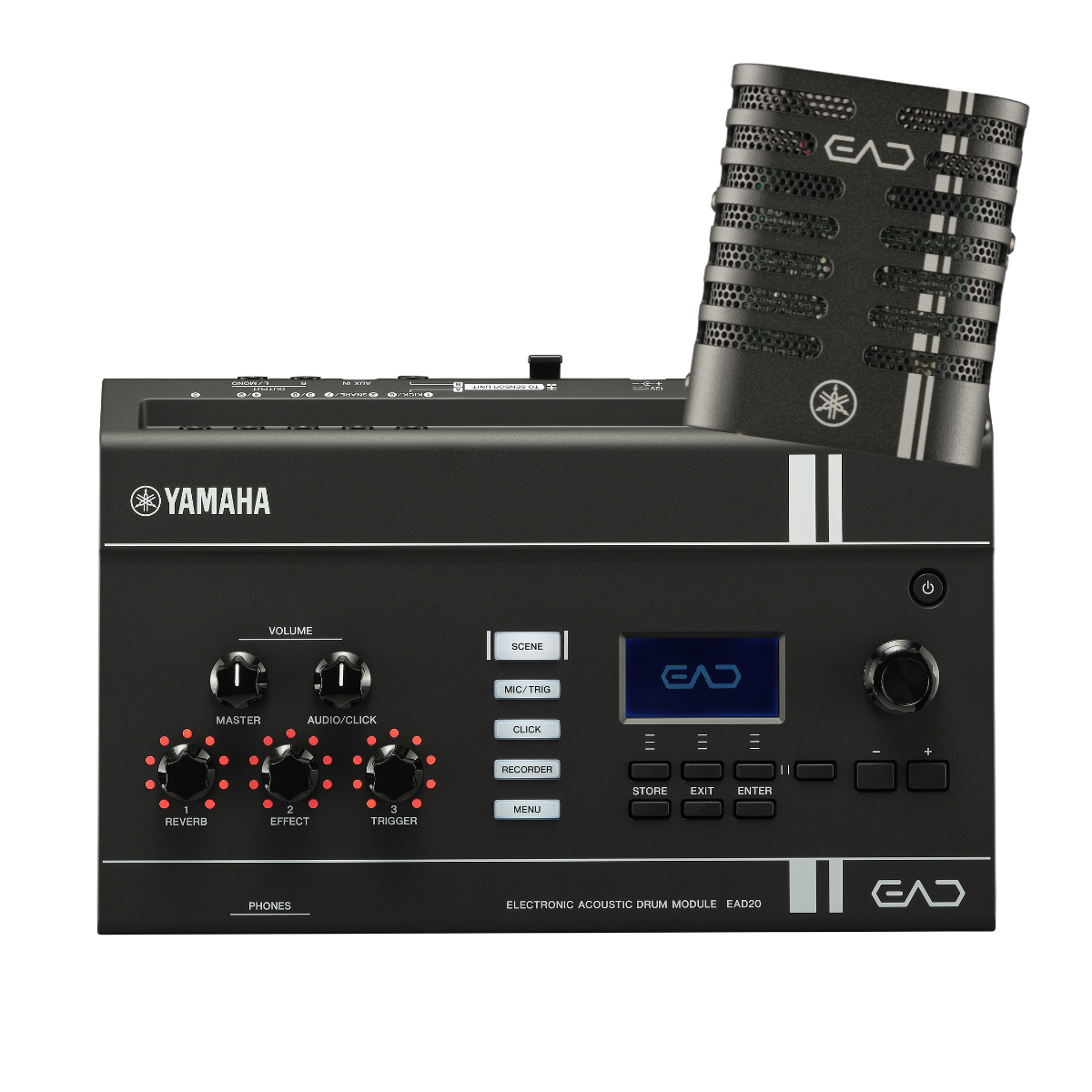

The Yamaha EAD20 is a complete electronic acoustic drum system for capturing, enhancing, recording, and expanding a real acoustic kit. It combines high-quality stereo drum capture, electronic trigger sounds, effects, recording, playback, and hybrid drum functionality in one compact setup. Designed as the core model in Yamaha's next-generation EAD range, it uses the same next-generation sound platform as the flagship EAD50 while concentrating on the features most drummers need for practice, recording, content creation, live use, and hybrid playing.

Mount the enhanced Sensor Unit to your bass drum hoop and the EAD20 captures a stereo image of your complete acoustic kit without surrounding it with a conventional collection of microphones, stands, cables, and preamps. You can then process your acoustic drums, add electronic sounds, practise with backing tracks, record into a DAW, or create videos through Yamaha's Rec'n'Share app. One simple system gives you a huge amount of room to create.

Available from Into Music, one of the UK's leading independent drum retailers. Call us on 01507 526517 for advice or order online with UK next day delivery available.

Make Your Acoustic Kit Sound Better in Minutes

Getting a consistent drum sound with traditional microphones can involve lengthy setup, careful microphone placement, stands, cables, preamps, and room-dependent processing. The EAD20 is designed to simplify that whole process. Its dedicated Sensor Unit mounts to the bass drum and captures a high-quality stereo image of the complete kit, allowing you to hear your acoustic drums with extra punch, definition, and clarity through headphones, recording equipment, or a PA system.

Yamaha estimates that an EAD20 setup can take around five minutes, compared with the considerably longer preparation required for a traditional multi-microphone system. That makes it particularly useful for practice rooms, rehearsals, home recording, content creation, and any situation where you would rather play than build a recording setup.

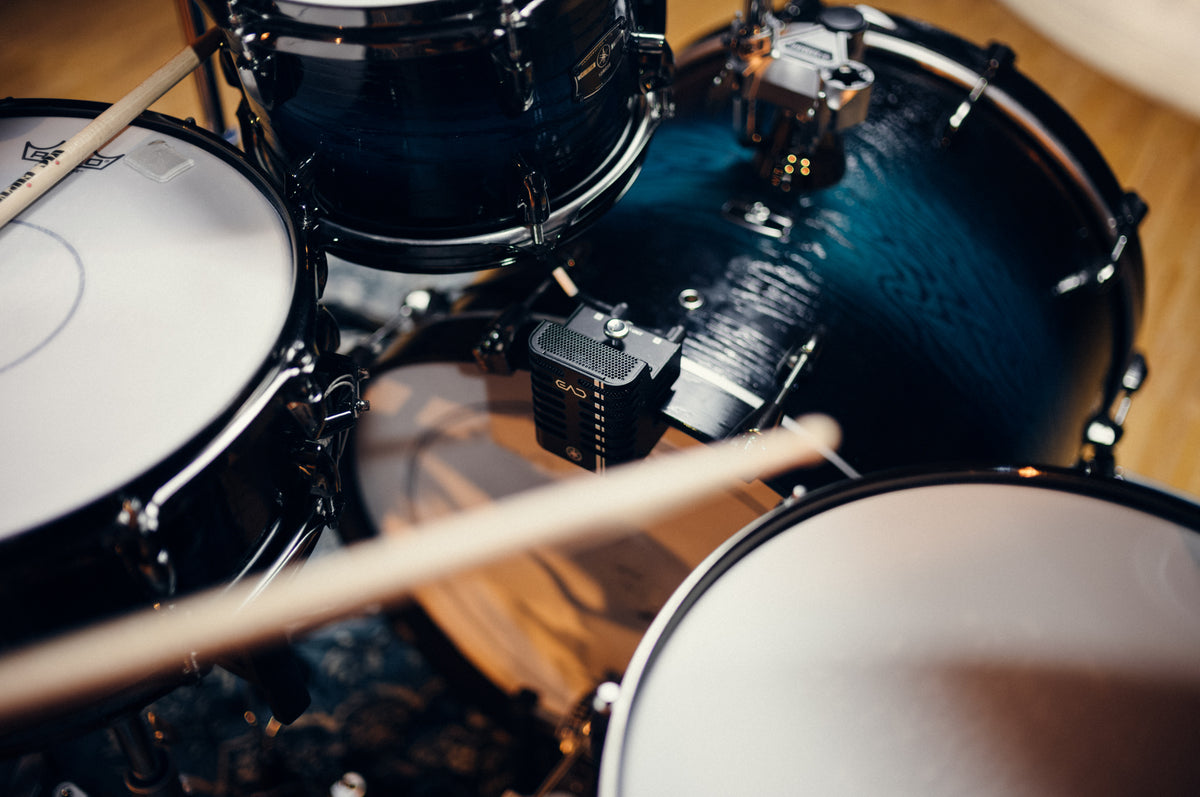

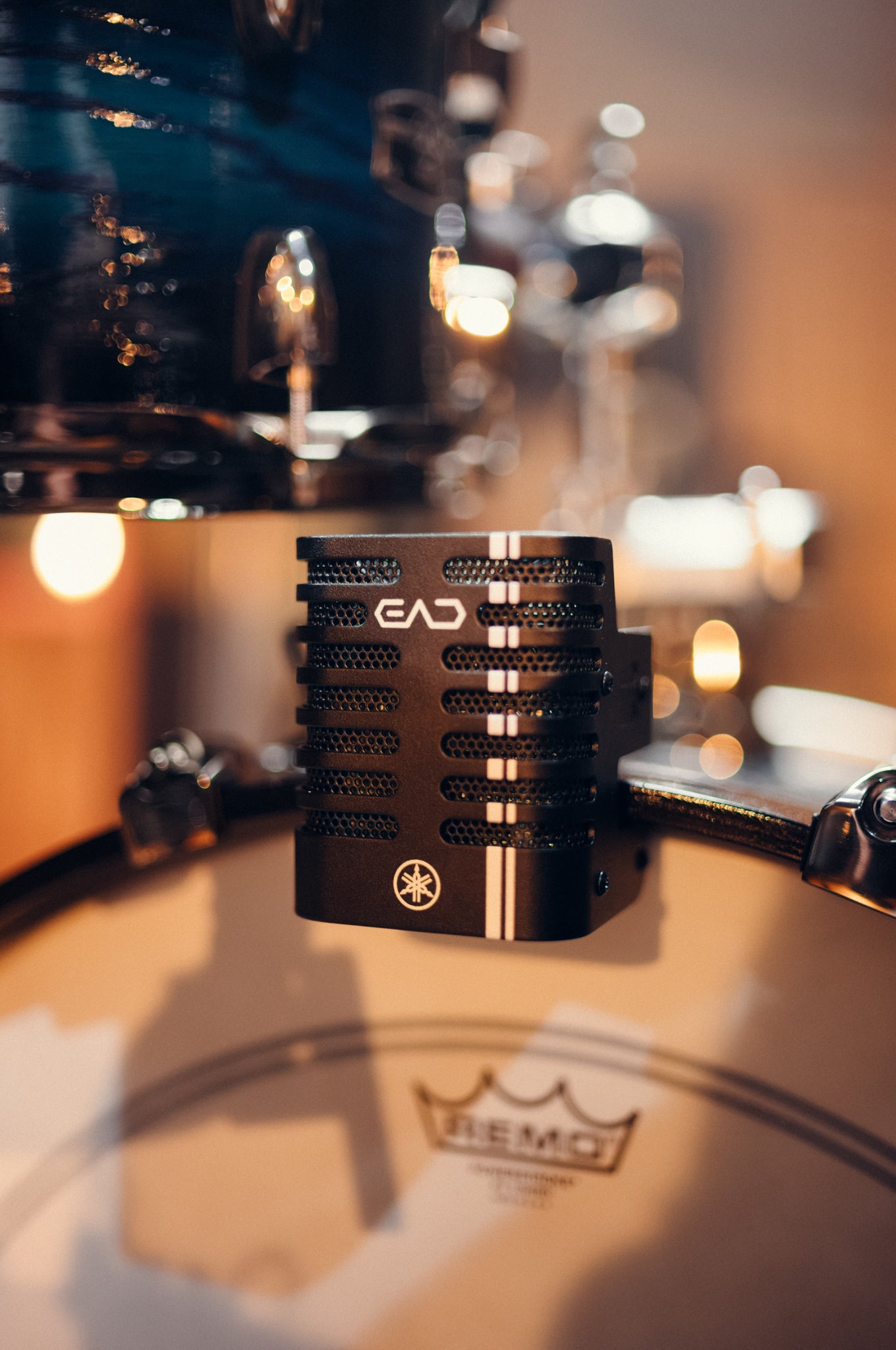

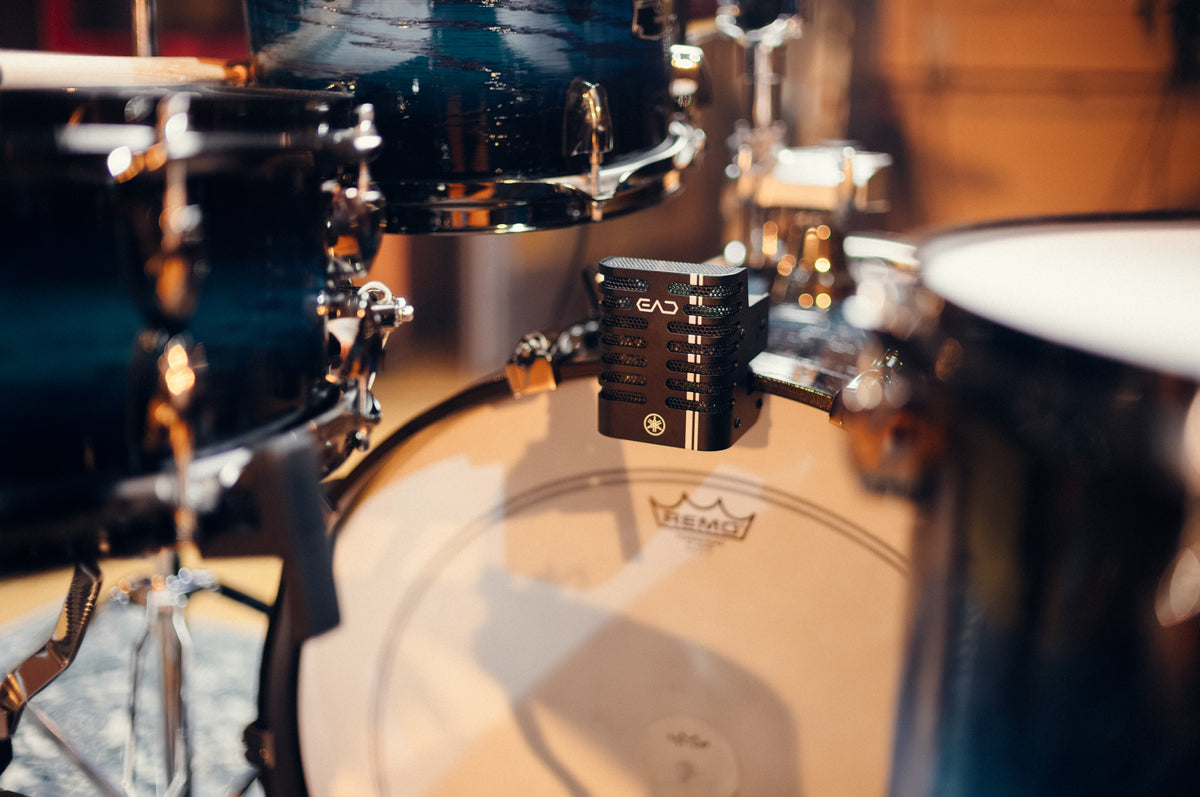

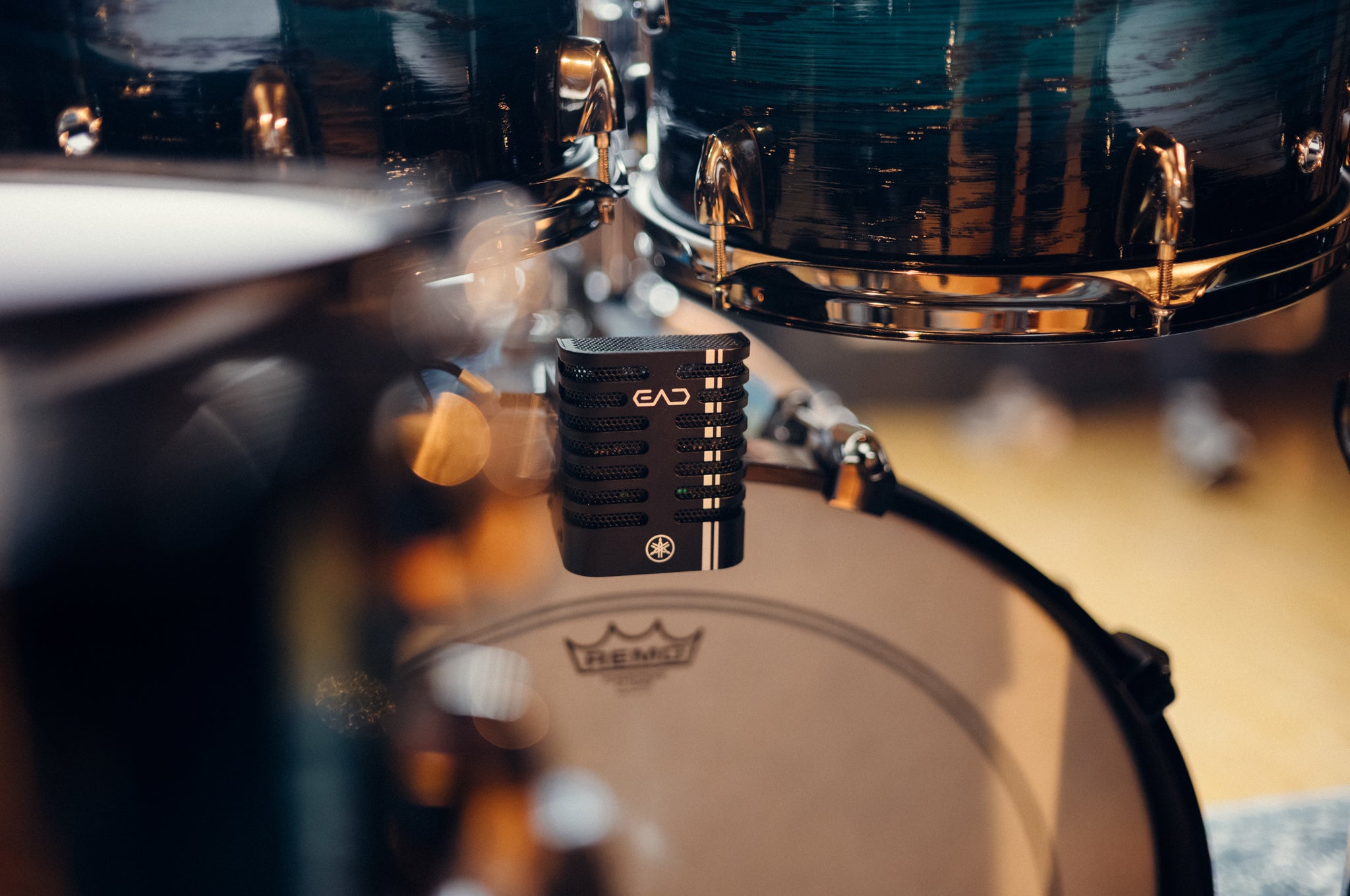

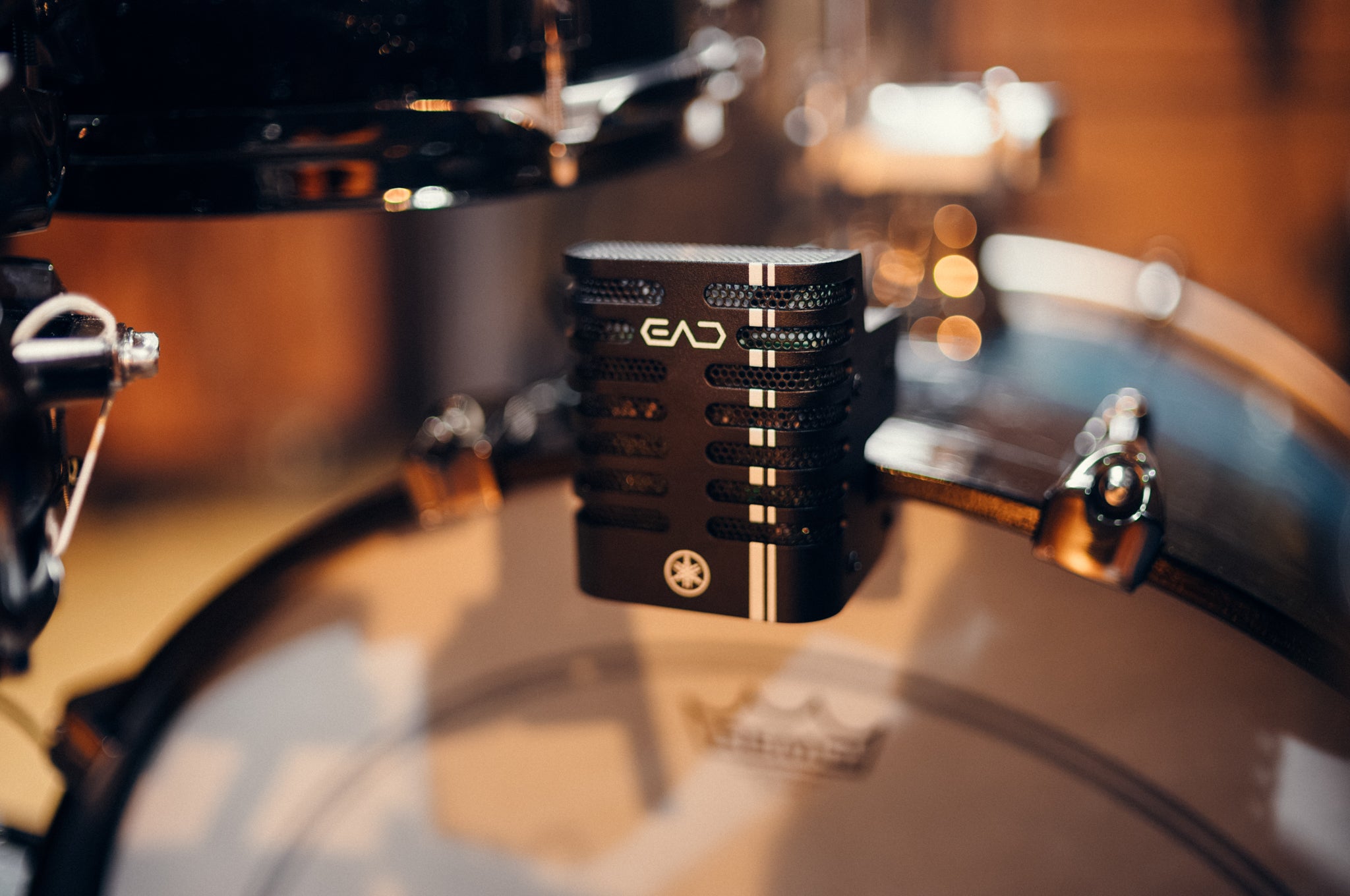

Enhanced Sensor Unit

The EAD20 is not simply an EAD10 with a new name. Yamaha developed a new Sensor Unit alongside improved audio processing to produce a more natural, balanced, and powerful representation of your acoustic kit. Your drums remain your drums rather than being replaced by samples, but the system gives you the tools to capture, enhance, and process their sound.

The Sensor Unit also includes a built-in bass drum trigger, allowing you to layer an electronic kick sound with your acoustic bass drum without buying a separate trigger. This makes it easy to start exploring hybrid sounds straight away.

Next-Generation Sound Platform

The EAD20 shares the next-generation sound platform used in Yamaha's flagship EAD50. Yamaha describes the resulting drum sound as natural, balanced, clearly defined, powerful, and capable of retaining the character of your acoustic kit. This makes the EAD20 a significant step forward for existing EAD10 users who want improved sound quality, greater connectivity, and more flexibility.

Build an Acoustic and Electronic Hybrid Setup

The EAD20 is more than a convenient way to microphone an acoustic kit. Its built-in electronic sounds, trigger functionality, and effects let you combine your real drums with electronic elements. Add a sample beneath the kick, layer electronic sounds with the snare and toms, transform the ambience around your kit, or gradually develop a fully customised hybrid rig.

The Sensor Unit already includes the kick trigger, but additional external triggers and electronic pads can be connected when you want greater control or more extensive electronic layering. The EAD20 supports up to nine trigger inputs, compared with up to six on the EAD10. Yamaha also positions it for use with acoustic, hybrid, electronic, and percussion setups, rather than limiting it to one conventional acoustic configuration.

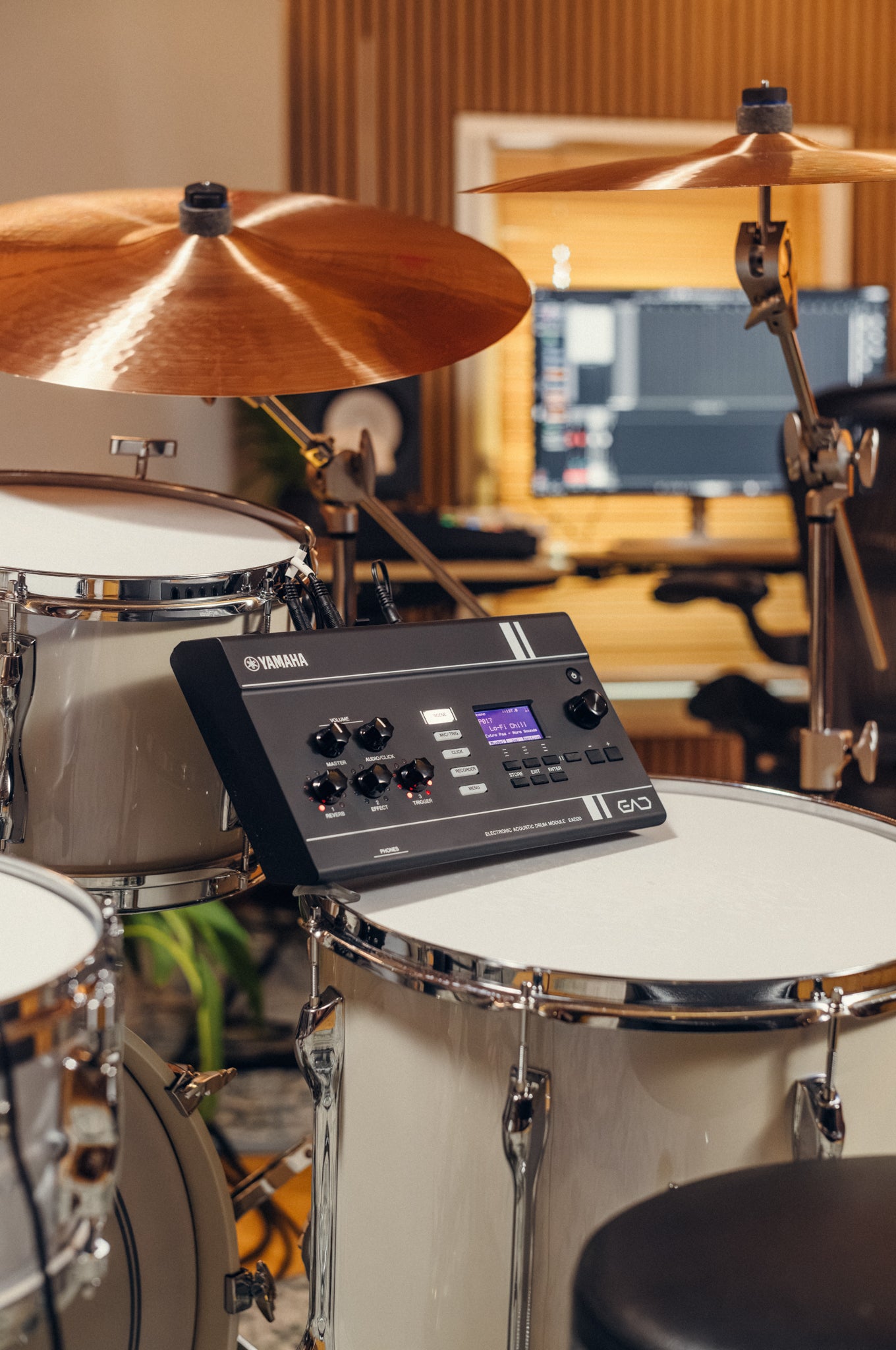

Multichannel Recording With 8-in / 10-out USB Audio

The EAD20 is built for more serious recording than a simple stereo capture system. Its 8-in / 10-out USB audio connection sends multichannel audio to a compatible DAW, giving you much more control than a single finished stereo signal. Microphone audio, trigger voices, and effects can be handled independently in your recording workflow, giving you greater flexibility when mixing afterwards.

For home recordists and project studios, this means you can achieve a capable drum recording setup without placing a microphone and stand around the kit every time you want to record. The EAD20 also includes MIDI functionality for wider computer and hybrid-system integration.

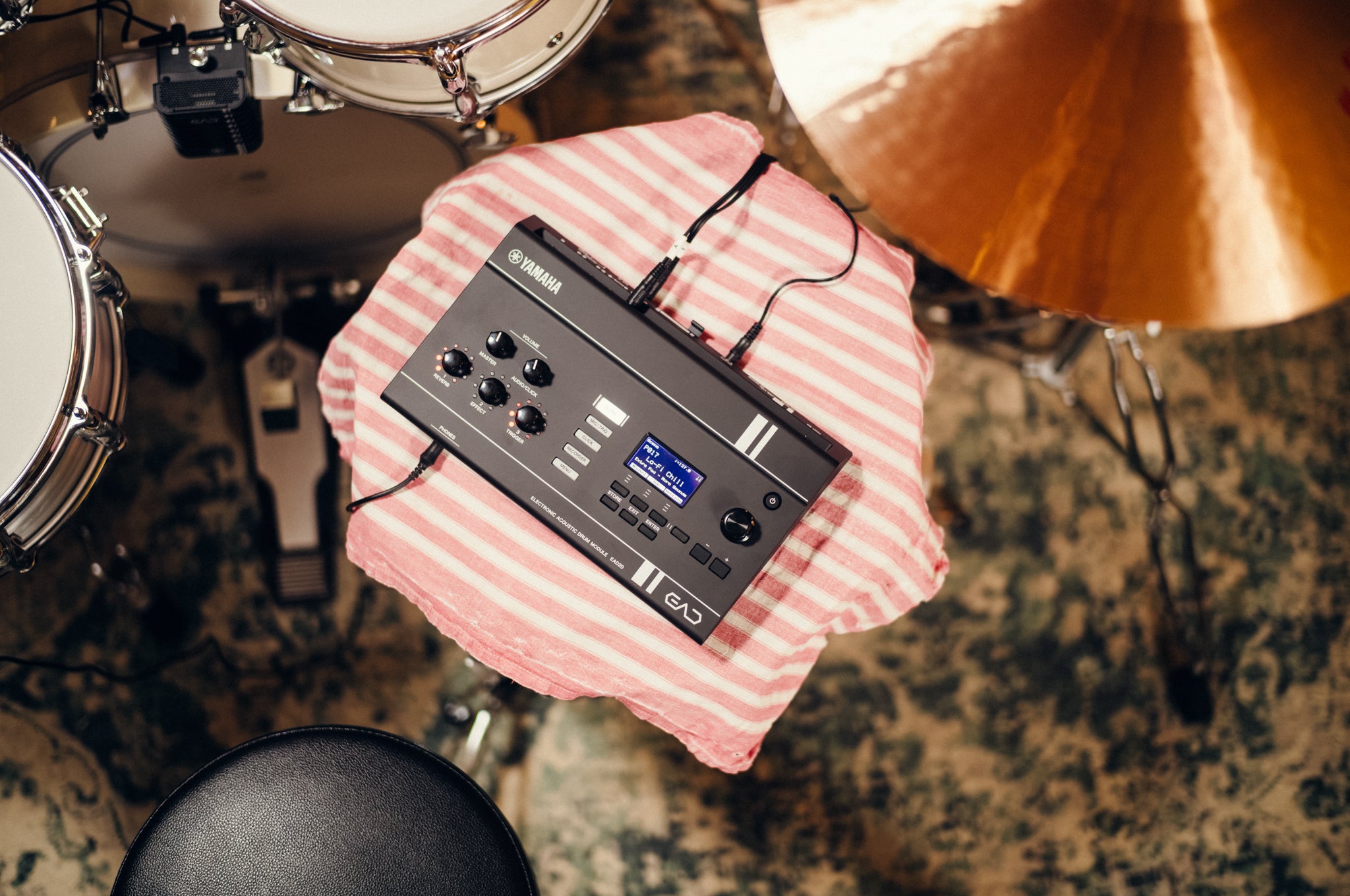

Practice With Headphones

The EAD20 is a powerful practice tool as well as a recording and performance system. Acoustic drums can overpower playback audio when you practise with headphones, making it difficult to hear your playing clearly without turning the monitoring level up too far. With the EAD20 capturing your kit, you can hear your drums alongside tracks and listen more closely to:

• Timing
• Dynamics
• Ghost notes
• Kick consistency
• Balance around the kit
• Overall performance

You can also add processing and effects to make practice more inspiring. Yamaha describes the system as helping drummers hear the detail in their playing while practising at safer monitoring levels.

Record Drum Covers and Content

For drum covers, Instagram clips, TikTok, YouTube videos, lessons, and other performance content, the EAD20 removes much of the complexity from the recording process. It works with Yamaha's Rec'n'Share app, allowing you to connect a compatible smartphone or tablet and combine EAD20 audio with video captured by your device.

You can also play along with a track running in the app, bringing your performance, backing track, and video together without building a complicated audio and video setup. The EAD20 does not record video itself — your phone or tablet handles that — but it can provide a considerably more polished drum sound than the device's built-in microphone.

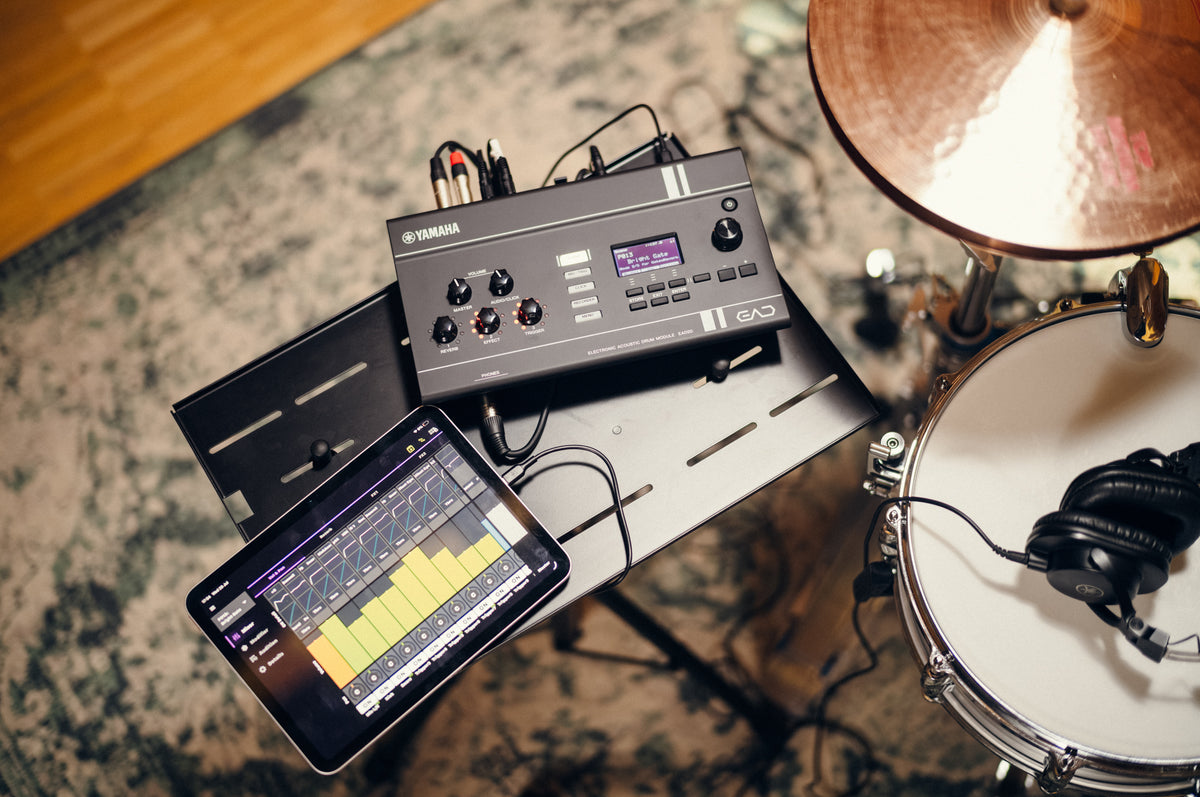

EAD Touch App Control

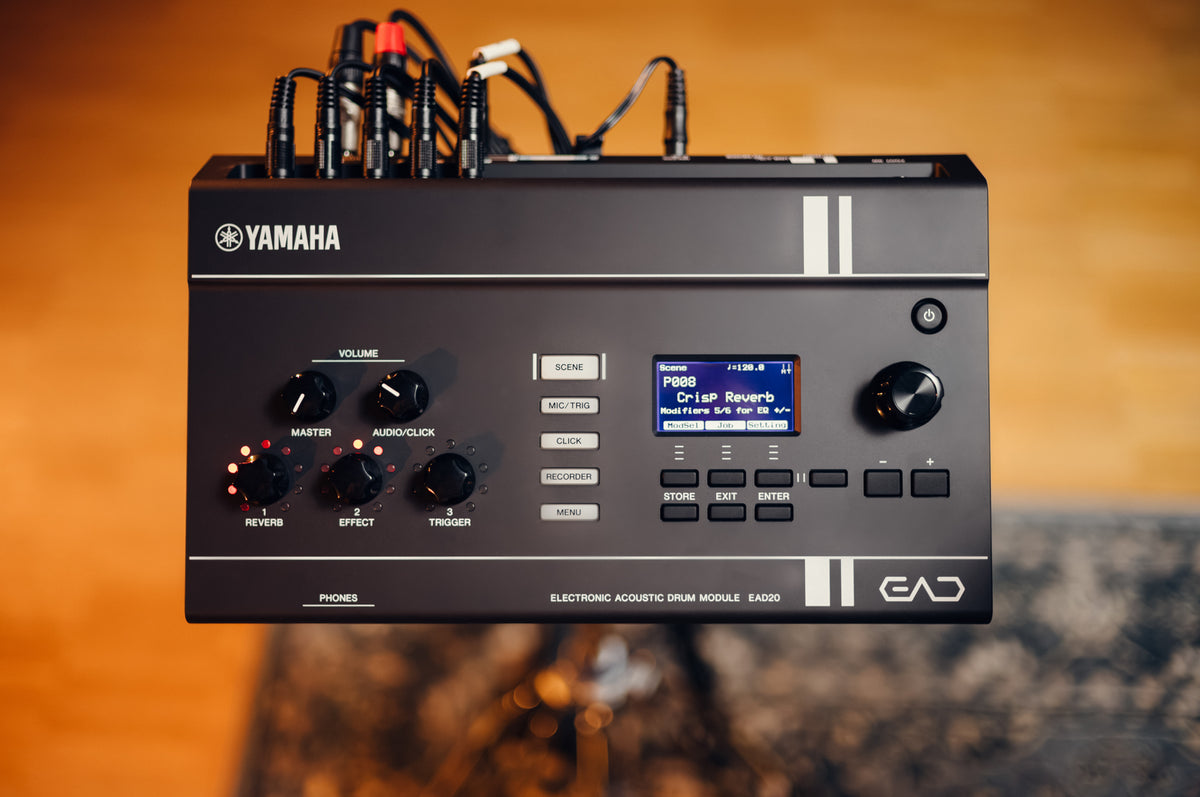

The EAD20 supports Yamaha's EAD Touch app, providing a more intuitive way to operate and customise the system. Unlike the EAD10's three fixed modifiers, the EAD20 has three assignable modifiers, so you can configure the controls around the way you interact with your sounds and settings.

Use Your Own Samples

User Sample support opens up more creative options for hybrid players. Add custom kick layers for a particular song, electronic percussion, effects, one-shots, or sounds made specifically for a live set. Yamaha positions the EAD20's sound customisation as Advanced, compared with Basic functionality on the EAD10.

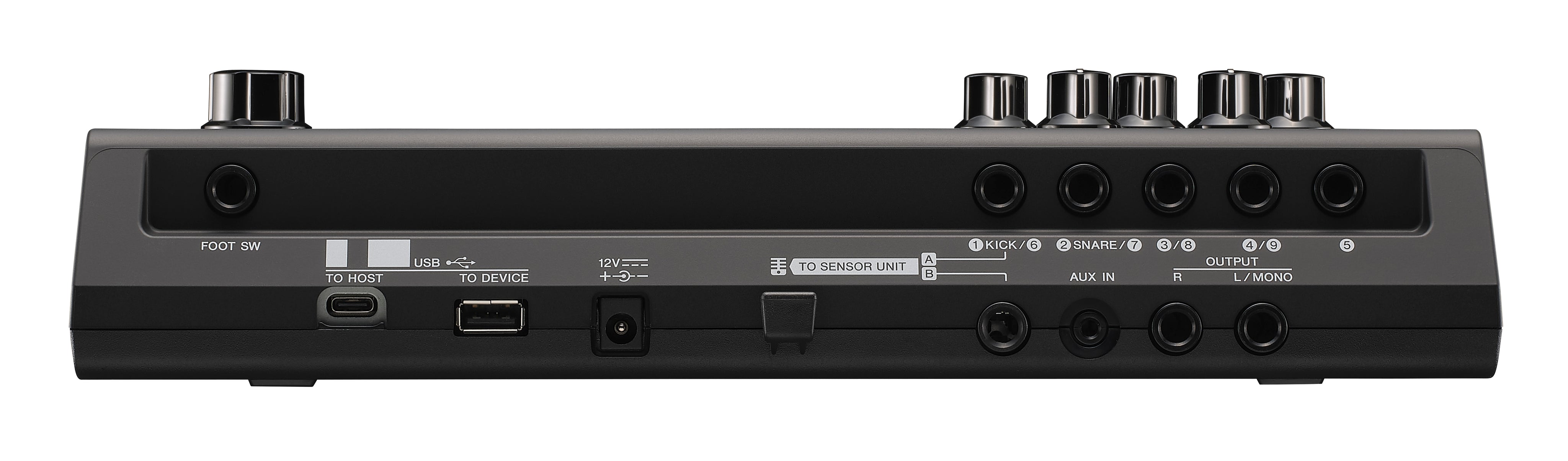

Connectivity, Routing, and Live Use

Alongside 8-in / 10-out USB audio and MIDI, the EAD20 provides more I/O and more flexible routing than the EAD10. Yamaha classes its routing and mixing capabilities as Advanced, compared with the EAD10's Basic implementation. This makes it well suited to recording and developed hybrid setups.

For live use, the compact Sensor Unit and module can capture and enhance an acoustic drum sound while reducing the number of microphones, stands, and cables you need to carry. It can help create a more consistent sound between rehearsals, venues, and performances, while keeping setup time manageable.

The EAD20 is not intended to replace the EAD50 for users who need extensive professional live expansion, advanced drum miking, or individual outputs. The EAD50 adds Advanced+ routing and mixing, advanced drum miking, individual outputs, and greater flagship expansion. The EAD20 instead focuses on a streamlined workflow for everyday musical creation.

Yamaha EAD20 vs EAD10 vs EAD50

The three systems sit at different points in Yamaha's EAD range:

What Has Changed From the EAD10?

• Improved sound quality: a new Sensor Unit and improved processing provide a more natural and powerful drum sound.
• More trigger inputs: the EAD20 supports up to 9 inputs rather than the EAD10's 6, with improved trigger compatibility.
• Multichannel USB audio: 8-in / 10-out USB audio provides more serious DAW recording possibilities.
• More connectivity: increased I/O, MIDI, and flexible routing make it better suited to recording and hybrid setups.
• EAD Touch: app-based control is added to the EAD20.
• Assignable controls: three assignable modifiers replace the EAD10's three fixed modifiers.

In short, the EAD10 introduced the concept, while the EAD20 develops it into a more capable recording and hybrid drum system.

Do You Need the EAD50?

The EAD20 uses the same next-generation sound platform as the EAD50, so choosing it does not mean choosing an older sound engine. The main difference is how far you need to expand the system.

The EAD20 is designed for drummers who want to practise, record, create videos, or build a hybrid acoustic kit without paying for specialist flagship features. The EAD50 becomes the stronger choice when you need:

• More extensive live-stage expansion
• Advanced+ routing and mixing
• Advanced drum miking
• Individual outputs
• A more extensively expandable professional setup

If you do not need individual outputs or extensive advanced miking and routing, the EAD20 can be the practical sweet spot between the simplicity of the EAD10 and the professional expansion of the EAD50.

Who Is the Yamaha EAD20 For?

• Acoustic drummers who want to hear and enhance their complete kit through headphones.
• Home recordists who want capable drum recordings without setting up multiple microphones for every session.
• Hybrid drummers combining triggers, electronic sounds, and acoustic drums.
• Content creators filming drum covers, social clips, lessons, and performances.
• Teachers and students monitoring, recording, and reviewing playing.
• Gigging drummers looking for a compact, repeatable way to capture and process their kit.
• Existing EAD10 users wanting improved connectivity, trigger expansion, recording, and control.

Key Features

• Next-generation Yamaha EAD system
• Same next-generation sound platform as the EAD50
• Newly enhanced Sensor Unit
• High-quality stereo capture of your complete acoustic kit
• Integrated bass drum trigger
• Natural, balanced, clearly defined, and powerful drum processing
• Built-in electronic sounds and effects
• User Sample support
• Up to 9 trigger inputs
• Suitable for acoustic, electronic, hybrid, and percussion setups
• 8-in / 10-out USB audio
• Multichannel DAW recording
• MIDI functionality
• Advanced routing and mixing
• More flexible I/O than the EAD10
• EAD Touch app support
• Three assignable modifiers
• Yamaha Rec'n'Share compatibility
• Ideal for practice, recording, content creation, and performance
• Compact alternative to a traditional multi-microphone drum setup
• Designed for fast setup and easy transportation

Product and Packaging Measurements

• EAD20 Size: 300mm wide x 190mm deep x 70mm high; weight 1.4kg
• Sensor Unit Size: 75mm wide x 78mm deep x 88mm high; weight 0.45kg
• Box dimensions: 511mm wide x 311mm deep x 143mm high
